KoreanФиксированные индукторы
| Фото | № детали производителя | Наличие | Количество | Технический паспорт | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250A-686-RCFIXED IND 68MH 12MA 580 OHM TH Bourns Inc. |
0 |
|
 Технический паспорт
|
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 68 mH | ±10% | 12 mA | 4mA | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-156-RCFIXED IND 15MH 22MA 157 OHM TH Bourns Inc. |
0 |
|
Технический паспорт
|
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 15 mH | ±10% | 22 mA | 12mA | Shielded | 157Ohm Max | 30 @ 79kHz | 290kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250A-186-RCFIXED IND 18MH 21MA 175 OHM TH Bourns Inc. |
0 |
|
Технический паспорт
|
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 18 mH | ±10% | 21 mA | 10mA | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
CW201212-1R0GFIXED IND 1NH 600MA SMD Bourns Inc. |
0 |
|
Технический паспорт
|
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±2% | 600 mA | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
CW252016-1R0GFIXED IND 1UH 330MA 1.75 OHM SMD Bourns Inc. |
0 |
|
Технический паспорт
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±2% | 330 mA | - | Unshielded | 1.75Ohm Max | 25 @ 50MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-6R8JFIXED IND 6.8NH 150MA 6 OHM SMD Bourns Inc. |
0 |
|
Технический паспорт
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 150 mA | - | Unshielded | 6Ohm | 18 @ 7.9MHz | 25MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
SDR0703-100MLFIXED IND 10UH 1A 170 MOHM SMD Bourns Inc. |
0 |
|
Технический паспорт
|
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1.4A | Unshielded | 170mOhm Max | 23 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
74F156AP-RCFIXED IND 1.5UH 900MA 250MOHM TH Bourns Inc. |
0 |
|
Технический паспорт
|
74F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1.5 µH | ±20% | 900 mA | - | Unshielded | 250mOhm Max | 45 @ 7.96MHz | 160MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.200" Dia x 0.500" L (5.08mm x 12.70mm) | - |
|

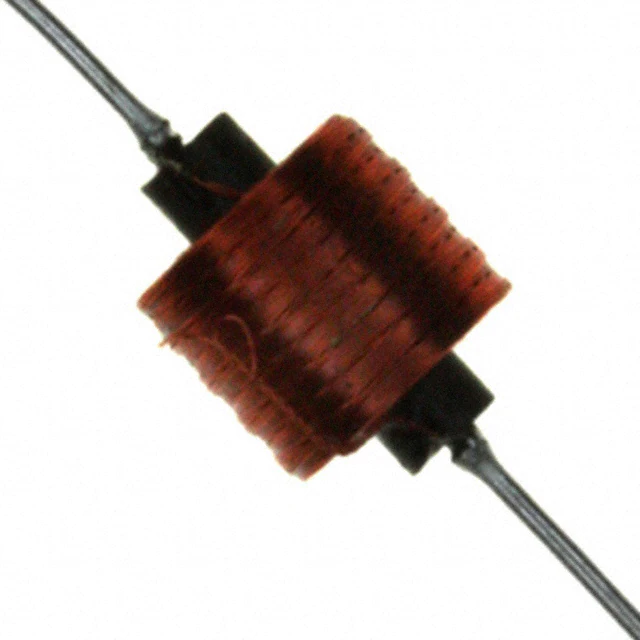

70F753AI-RCFIXED IND 7.5MH 41MA 85.2 OHM TH Bourns Inc. |
0 |
|
Технический паспорт
|
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 mH | ±5% | 41 mA | - | Unshielded | 85.2Ohm Max | 49 @ 250kHz | 600kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
|
5622-RCFIXED IND 500UH 5A 90 MOHM TH Bourns Inc. |
0 |
|
Технический паспорт
|
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 5 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
